Léaf

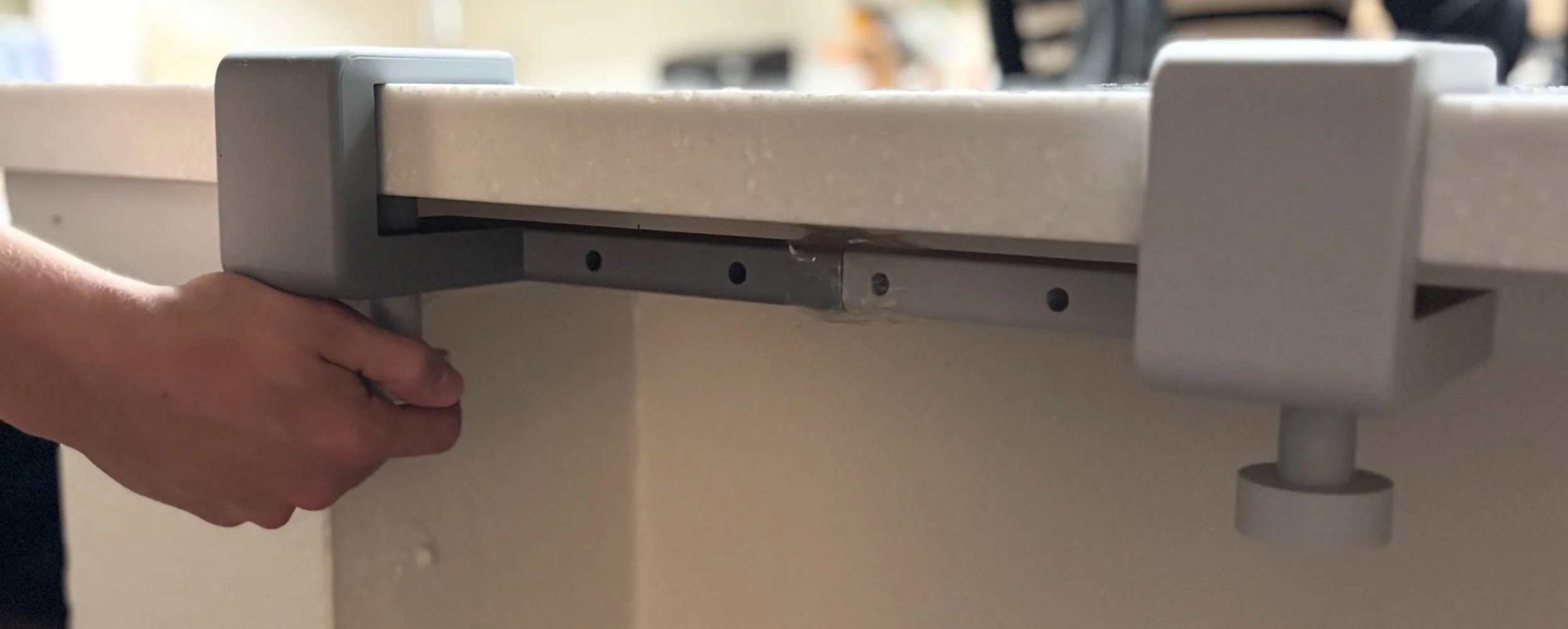

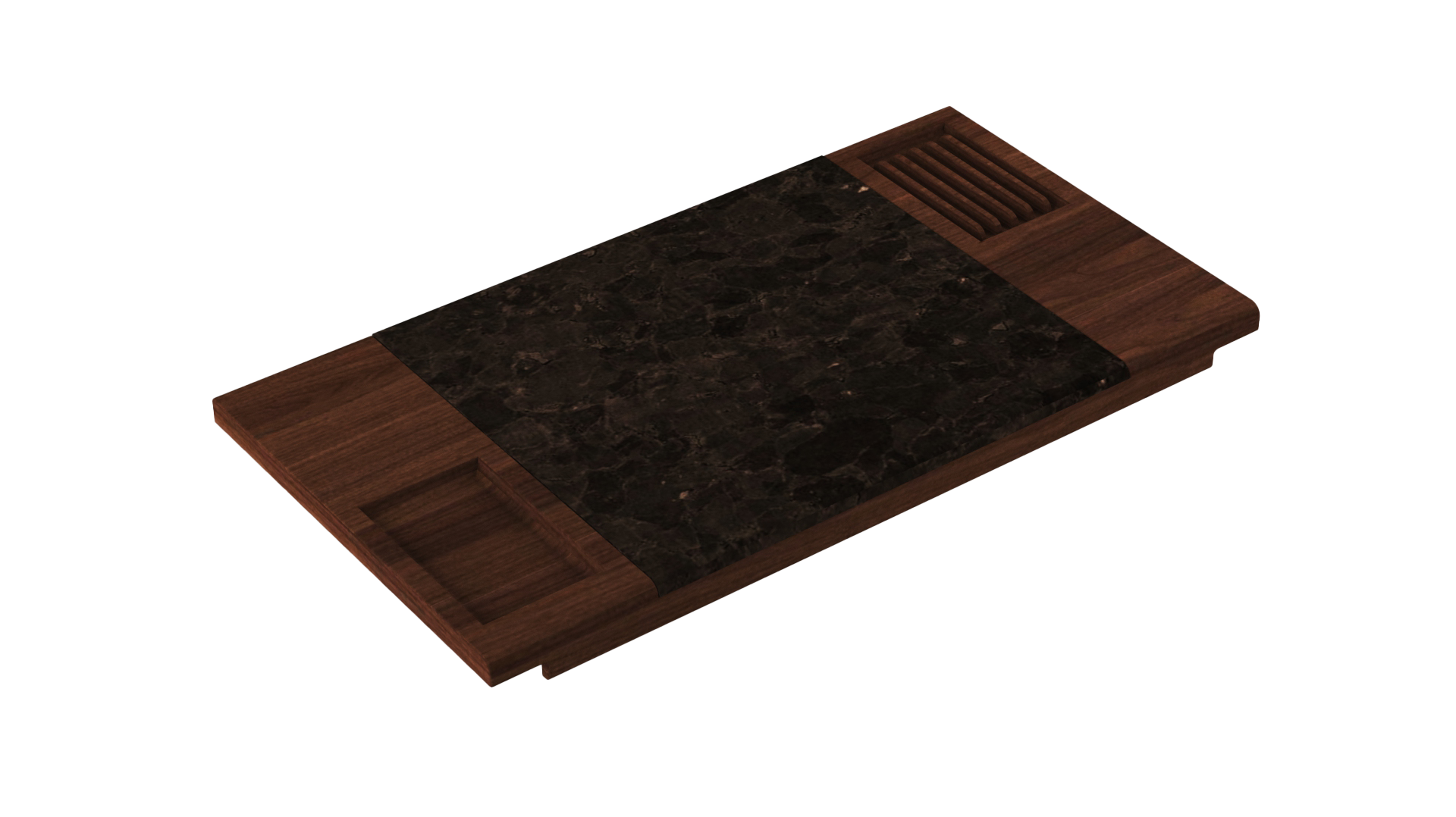

Designed to enhance rather than replace, this desk assistant attaches to a pre-existing desk through adjustable screw clamps. Its minimally invasive form and soft-sliding drawers create an ergonomic, adaptable addition that supports organization without interrupting the workspace.

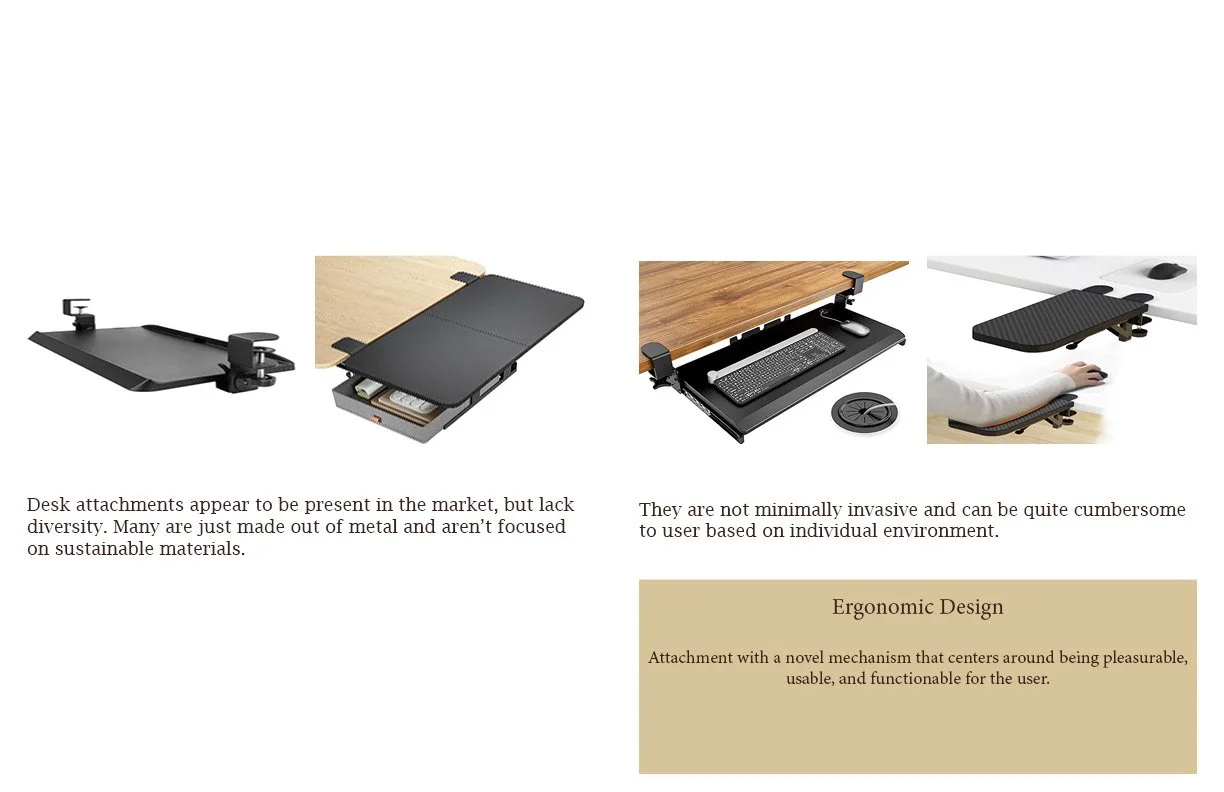

Research

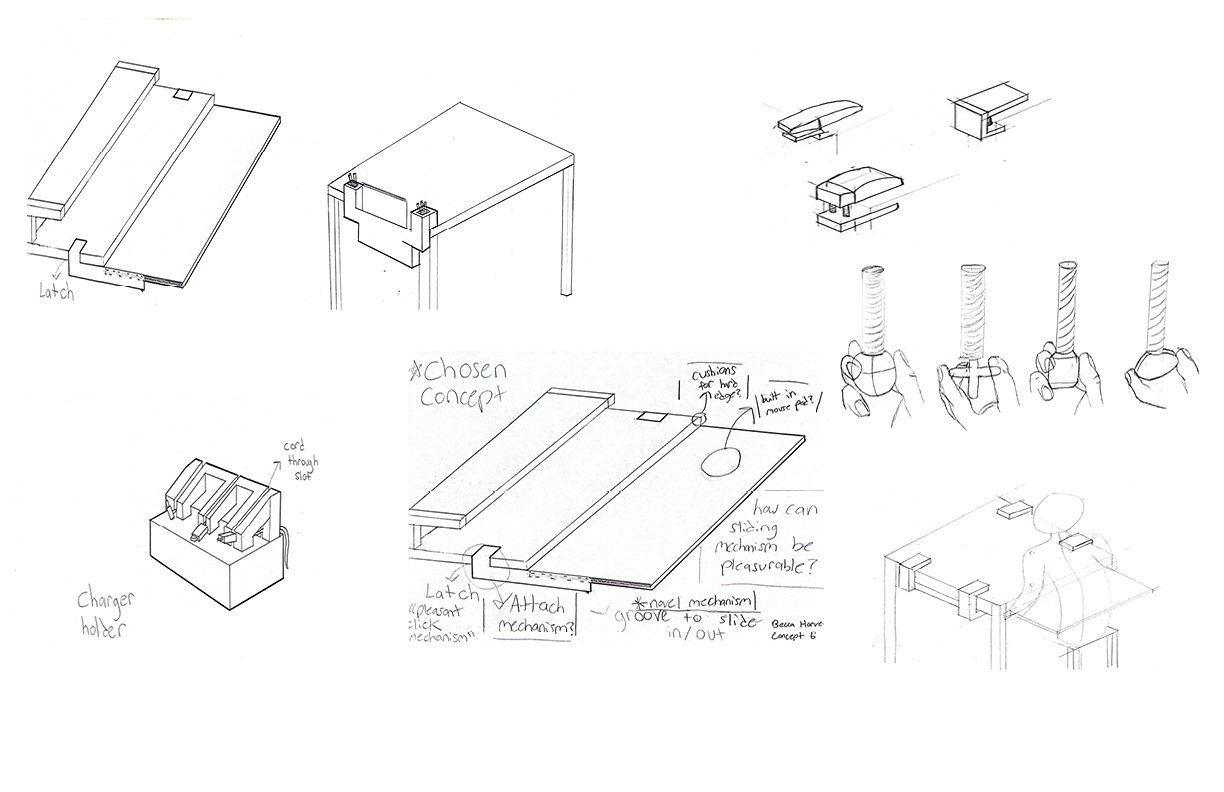

Preliminary Sketching

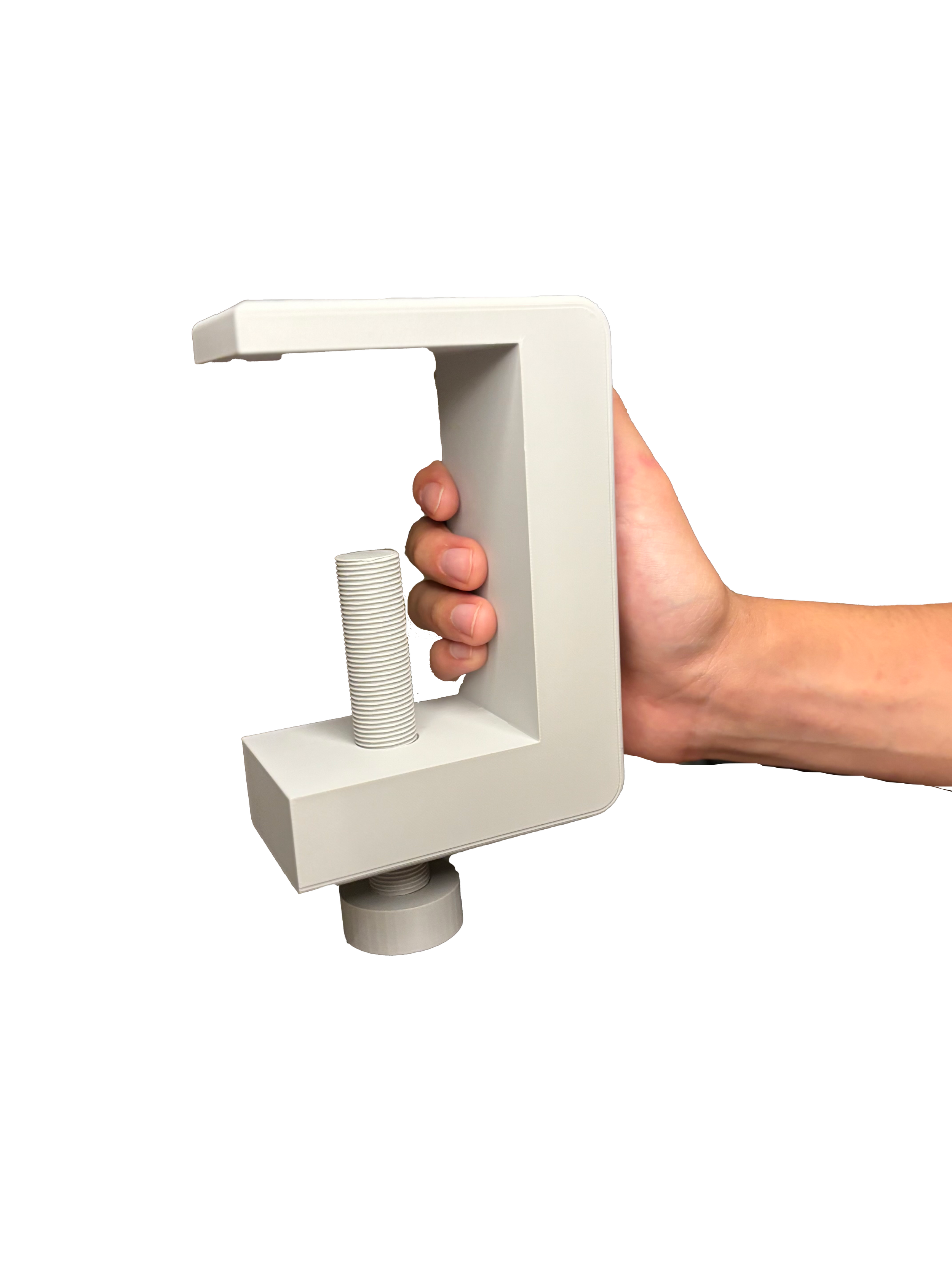

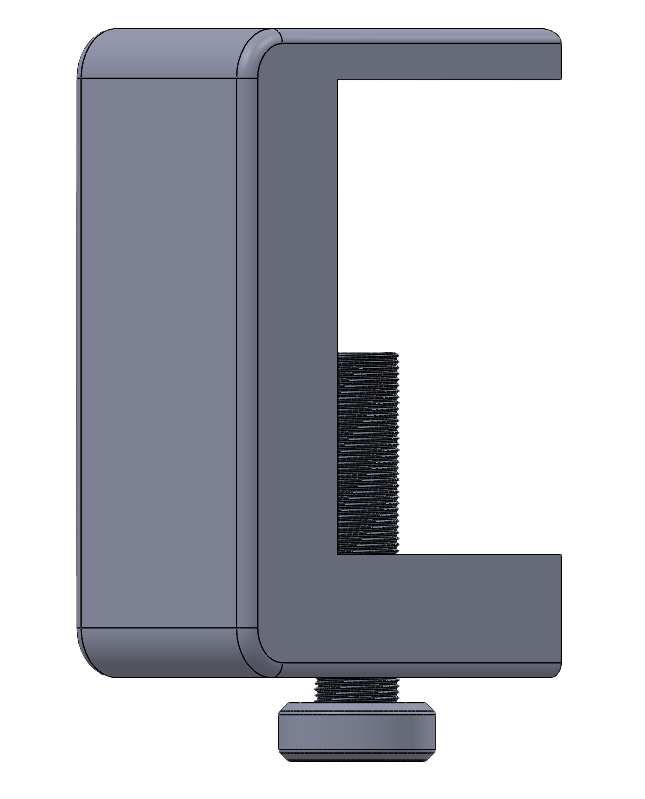

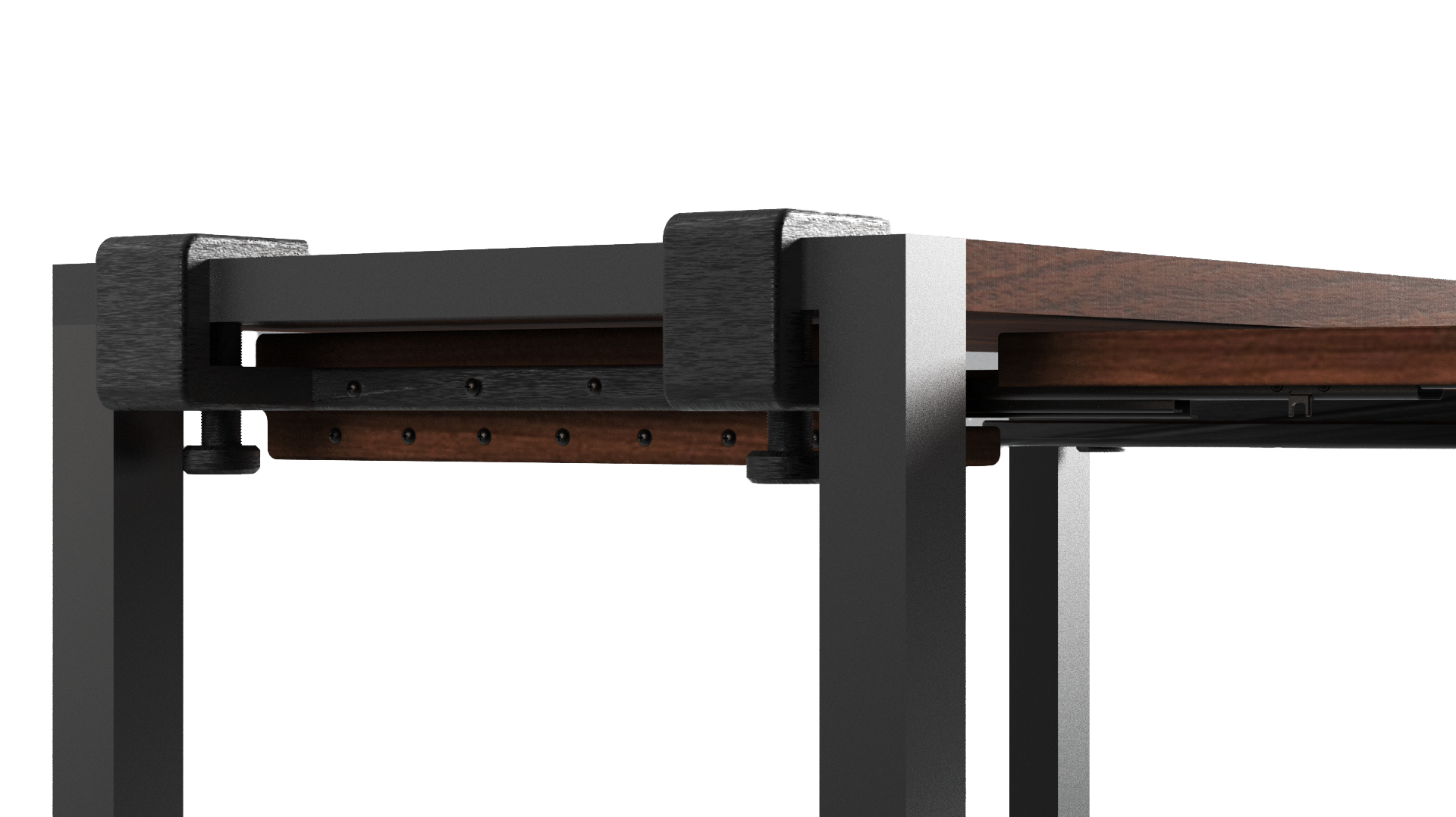

3D Clamps
The initial print was too large, but it allowed for refinement of the screw design and evaluate the clamp’s effectiveness.

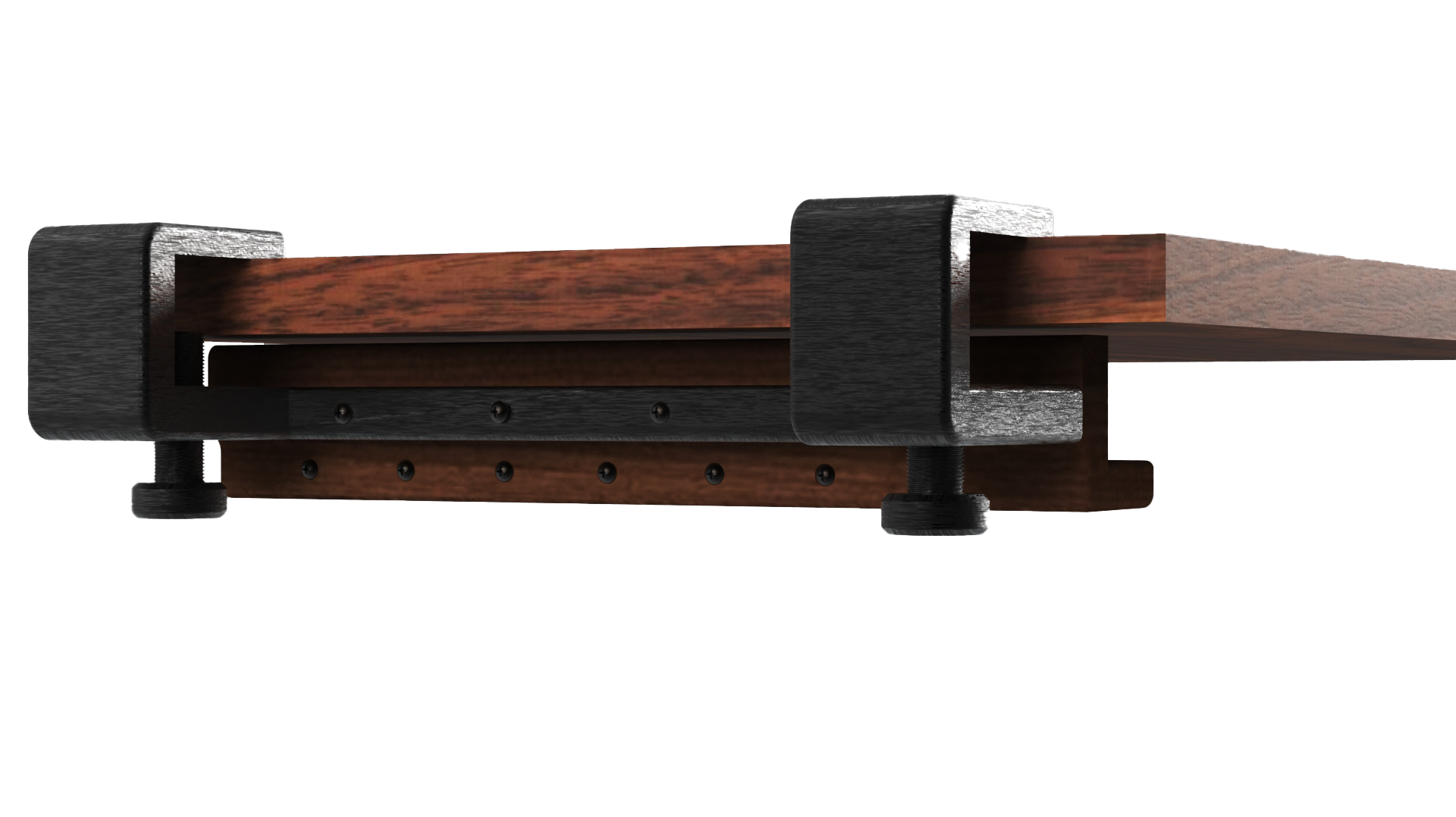

Walnut Veneer Plywood
Brass Phillips Decorative Rounded Head Screws
Black Powder Coated Stainless Steel

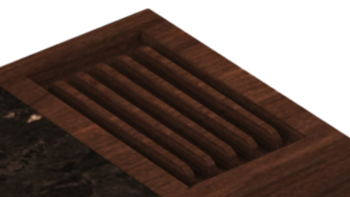

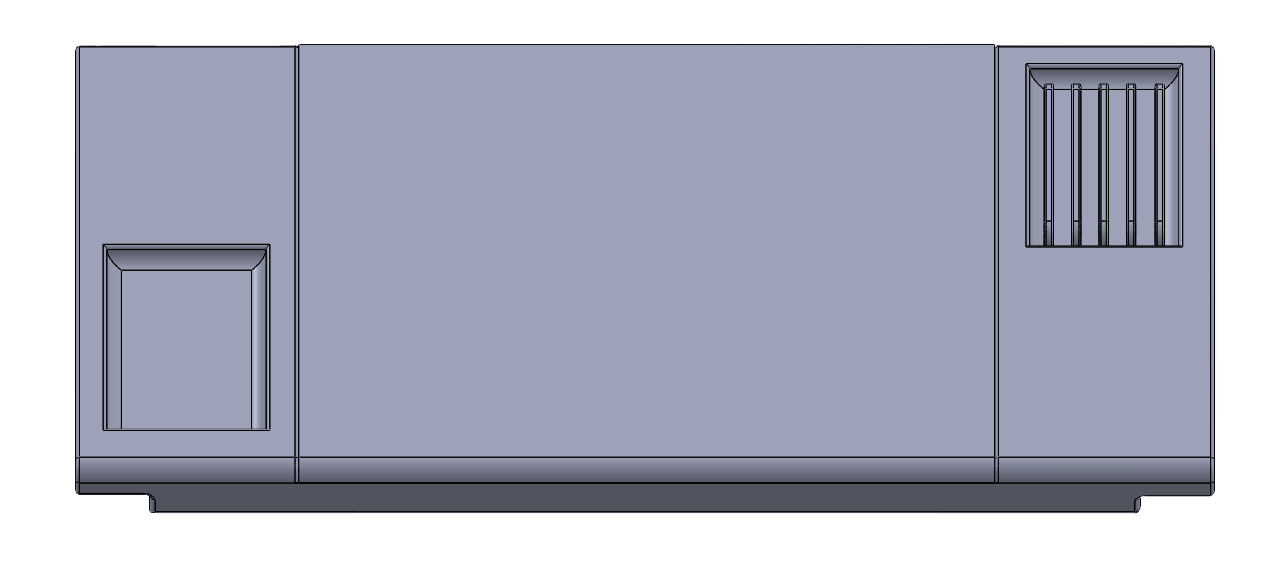

Holder for pens, pencils, markers.
Cork rubber composite placed over natural latex foam. Heat resistant, eco-friendly, easy to clean, and mouse friendly. Fillet for comfortable wrist rest.
1/4” lip with 1/8” chamfer for easy pull with finger grip

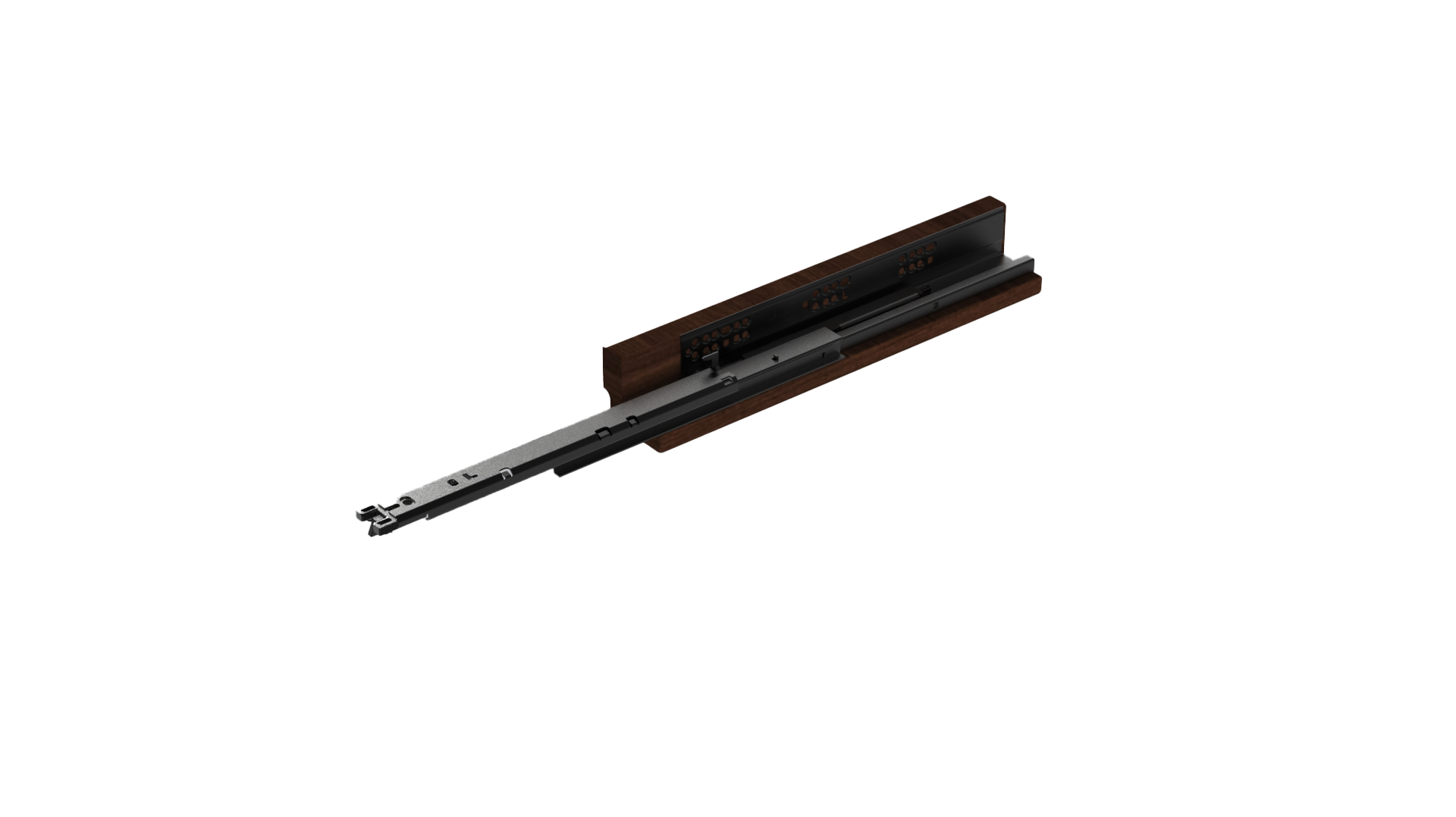

Stainless steel soft close drawer slides. Slides out easy, locks in place.
Léaf demonstrates a thoughtful balance between functionality, ergonomics, and user-centered design. By integrating a minimally invasive clamp system with smooth, soft-close drawer slides, the assistant enhances the workspace without compromising existing furniture. Iterative prototyping and user testing informed key decisions on size, accessibility, and tactile experience, ensuring the final design supports organization and efficiency. This project highlights the importance of adapting design solutions to real-world user needs, blending practicality with subtle elegance in everyday tools.
